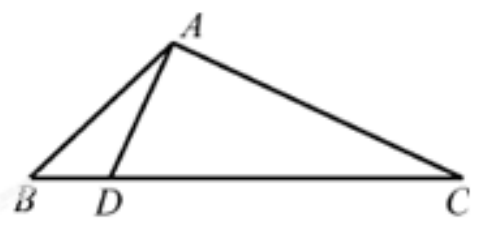

13.如图,在 $\triangle A B C$ 中,已知点 $D$ 在 $B C$ 边上,$A D \perp A C, \sin \angle B A C=\frac{2 \sqrt{2}}{3}, A B=3 \sqrt{2}, A D=3$,则 $B D$ 的长为 $\_\_\_\_$
参考答案$\sqrt{3}$
2013_退役省自主命题 (2013·理)
13.如图,在 $\triangle A B C$ 中,已知点 $D$ 在 $B C$ 边上,$A D \perp A C, \sin \angle B A C=\frac{2 \sqrt{2}}{3}, A B=3 \sqrt{2}, A D=3$,则 $B D$ 的长为 $\_\_\_\_$
[答案]$\sqrt{3}$
[解析]设 $\angle B A D=\theta$,则
$\because \sin \angle B A C=\sin \left(\theta+90^{\circ}\right)=\cos \theta, \therefore \cos \theta=\frac{2 \sqrt{2}}{3}$,在 $\triangle A B D$ 中应用余弦定理得:
$\cos \theta=\frac{2 \sqrt{2}}{3}=\frac{(3 \sqrt{2})^{2}+3^{2}-\mathrm{BD}^{2}}{2 * 3 \sqrt{2} * 3}$,故 $B D=\sqrt{3}$
[ 考点定位]余弦定理及诱导公式的应用,属于解斜三角形中容易题。
